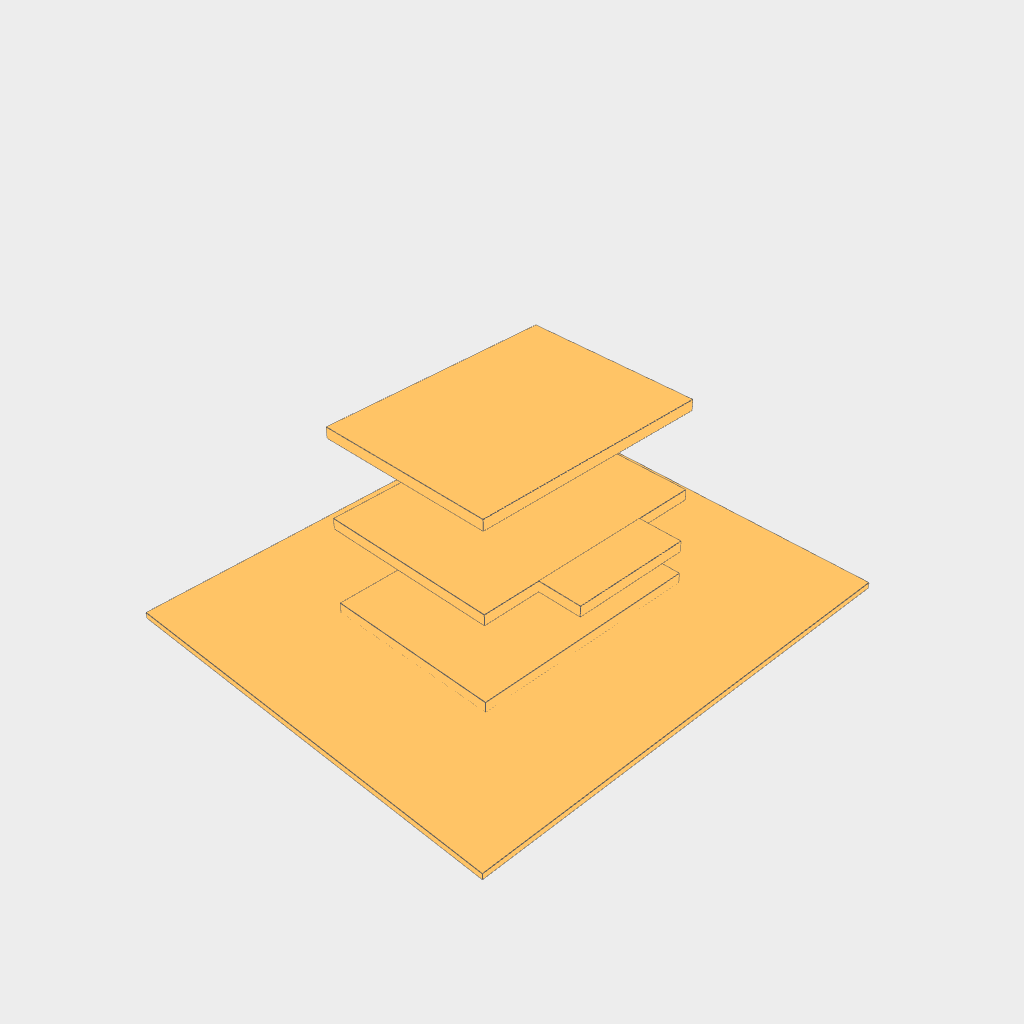

Projekt

PROJECT pragmaticBIM.ch/project

Schafft den gemeinsamen organisatorischen Bezugsrahmen, damit Fachmodelle und ihre Inhalte eindeutig demselben Bauvorhaben zugeordnet werden können.

Beschreibung

Wurzel der räumlichen Struktur; fasst alle Planungsinhalte einer IFC-Datei zusammen.
Muss in jeder IFC-Datei vorhanden sein.

Modellierungshinweis

Genau ein Projekt pro IFC-Datei.
Name gemäss Projektbezeichnung pflegen.

IFC-Entität

IFC4: IfcProject
IFC4.3: IfcProject
IFC2x3: IfcProject
Anwendbarkeitsregel: entity_ifc4=IfcProject OR entity_ifc2x3=IfcProject

Attribute

Attribut Definition Verwendet in

Attribut	Definition	Verwendet in
Name	Projektbezeichnung zur eindeutigen Zuordnung der Dateien.	BES-ABSTRACTBIM-COMP BES-AWARD-INTERFACE +133 weitere BES-CONCRETE-TENDER BES-COST-INTERFACE BES-DESIGN-BUILD BES-DESIGNER-PROCUREMENT BES-DOOR-TENDER BES-DRYWALL-TENDER BES-ELEMENT-TENDER BES-ELEMENT-COST-POSTCALC BES-ELEVATOR-EARLY BES-EXISTING-BUILDING-MEP BES-EXISTING-POINT-CLOUD BES-EXISTING-CIRCULARITY BES-EXISTING-STRUCTURE BES-FIRESTOP-TENDER BES-FLOORING-TENDER BES-FUNCTIONAL-BRIEF BES-ICE-SESSION BES-IPD BES-MASONRY-TENDER BES-SEISMIC-MEP BES-OWNER-CDE BES-PAINTING-TENDER BES-PLAN-BOX BES-ROOM-PROGRAM BES-SITE-WLAN BES-STEELWORK-TENDER BES-EXISTING-SITE BES-TILING-TENDER BES-TIMBER-CONTRACTOR BES-WINDOW-TENDER CON-PROGRESS-DOC CON-DEFECT-MGMT CON-FASTEN-SUSP CON-FINAL-MEASUREMENT CON-SHL-BWP CON-ROOM-LABEL CON-PRECAST-ORDER CON-REINF-EXEC CON-ROBOT-LAYOUT DES-ABSTRACTBIM-BPS DES-APT-SCHEDULE DES-ARCH-MEP-COORD DES-BASIC-PIPING DES-PARCELS DES-PERMIT DES-PHYSICS DES-CEILING-MIRROR DES-MATERIAL-PASS DES-COMPLEX-ASSEMBLY DES-KV DES-CRIT-INSERT DES-D0165 DES-DOOR DES-DRAWINGS DES-DRYWALL-REINF DES-EBKP-H DES-ELEMENT-COST-EARLY DES-ELEMENT-COST-LATE DES-EMBED-REINF DES-UVP DES-FACADE DES-FIRE-MATRIX DES-FIRE-CONCEPT DES-GFA DES-FLOORING DES-LCA DES-FURNITURE DES-HUMUS DES-LAYOUT DES-LIGHTING-COORD DES-MEP-SCHEM DES-MEP-USAGE-AGREEMENT DES-MODEL-VIS DES-PARKING DES-PLANNING-INTERFACE DES-SANITARY-FIXTURE-COORD DES-SIA416 DES-STRUCT-MASONRY DES-STRUCT-MEP-OPENINGS DES-TERRAIN DES-TRAFFIC DES-UNDERFLOOR-HEATING DES-URBAN-MASS DES-USAGE-AGREEMENT DES-WALL-REQUIREMENTS HOV-COBIE HOV-FM-3D HOV-FM-MIN HOV-NATIVE HOV-PRODUCT-PASS-GTIN HOV-PRODUCT-PASS-SERIAL OPR-BUILDING-PERFORMANCE OPR-FM-ARCH OPR-FM-PC OPR-FIRESTOP-MAINT OPR-SIGNAGE-ROOM QAS-ACCESS-SIA500 QAS-ACOUSTIC QAS-ARCH-STRUCT-ADOPT QAS-ARCH-STRUCT-COORD QAS-BUILD-SEC QAS-COST-PLAUS QAS-SITE-LOGISTICS QAS-CONTRACTOR-DESIGN QAS-COORD-ZONE QAS-DAYLIGHT QAS-DECISION-VIS QAS-DESIGN-REVIEW QAS-DET-REF QAS-EARLY-COORD QAS-ELEMENT-PERF QAS-VORSATZ QAS-FALL-PROTECTION QAS-FIRE QAS-FUNCTIONAL-ACCEPTANCE QAS-FUND QAS-FURNISHABILITY QAS-HAZMAT-CHECK QAS-INSTALL-PATH QAS-MAINT-SPACE QAS-MEP-DETAIL QAS-OUTLET-USER QAS-CONSTRAINT QAS-BENCHMARK COM-QR-STAKEHOLDER-INFO QAS-ROOM-PROGRAM QAS-SPECIAL-ROOM-USER LAN-SPONGE-CITY COM-STAKEHOLDER-DIALOG QAS-EXCL-ZONE QAS-TREE-PRESERVE QAS-URBAN-AR QAS-USAGE-AGREEMENT
Phase	Bezeichnung der Teilphase gemäss SIA 112. Zulässige Werte `11` - Strategische Planung `21` - Vorstudien `22` - Vorstudien Verfahren `31` - Vorprojekt `32` - Bauprojekt `33` - Bewilligungsverfahren `41` - Ausschreibung `51` - Ausführungsplanung `52` - Ausführung `53` - Inbetriebnahme `61` - Betrieb `62` - Überwachung	BES-ABSTRACTBIM-COMP BES-AWARD-INTERFACE +133 weitere BES-CONCRETE-TENDER BES-COST-INTERFACE BES-DESIGN-BUILD BES-DESIGNER-PROCUREMENT BES-DOOR-TENDER BES-DRYWALL-TENDER BES-ELEMENT-TENDER BES-ELEMENT-COST-POSTCALC BES-ELEVATOR-EARLY BES-EXISTING-BUILDING-MEP BES-EXISTING-POINT-CLOUD BES-EXISTING-CIRCULARITY BES-EXISTING-STRUCTURE BES-FIRESTOP-TENDER BES-FLOORING-TENDER BES-FUNCTIONAL-BRIEF BES-ICE-SESSION BES-IPD BES-MASONRY-TENDER BES-SEISMIC-MEP BES-OWNER-CDE BES-PAINTING-TENDER BES-PLAN-BOX BES-ROOM-PROGRAM BES-SITE-WLAN BES-STEELWORK-TENDER BES-EXISTING-SITE BES-TILING-TENDER BES-TIMBER-CONTRACTOR BES-WINDOW-TENDER CON-PROGRESS-DOC CON-DEFECT-MGMT CON-FASTEN-SUSP CON-FINAL-MEASUREMENT CON-SHL-BWP CON-ROOM-LABEL CON-PRECAST-ORDER CON-REINF-EXEC CON-ROBOT-LAYOUT DES-ABSTRACTBIM-BPS DES-APT-SCHEDULE DES-ARCH-MEP-COORD DES-BASIC-PIPING DES-PARCELS DES-PERMIT DES-PHYSICS DES-CEILING-MIRROR DES-MATERIAL-PASS DES-COMPLEX-ASSEMBLY DES-KV DES-CRIT-INSERT DES-D0165 DES-DOOR DES-DRAWINGS DES-DRYWALL-REINF DES-EBKP-H DES-ELEMENT-COST-EARLY DES-ELEMENT-COST-LATE DES-EMBED-REINF DES-UVP DES-FACADE DES-FIRE-MATRIX DES-FIRE-CONCEPT DES-GFA DES-FLOORING DES-LCA DES-FURNITURE DES-HUMUS DES-LAYOUT DES-LIGHTING-COORD DES-MEP-SCHEM DES-MEP-USAGE-AGREEMENT DES-MODEL-VIS DES-PARKING DES-PLANNING-INTERFACE DES-SANITARY-FIXTURE-COORD DES-SIA416 DES-STRUCT-MASONRY DES-STRUCT-MEP-OPENINGS DES-TERRAIN DES-TRAFFIC DES-UNDERFLOOR-HEATING DES-URBAN-MASS DES-USAGE-AGREEMENT DES-WALL-REQUIREMENTS HOV-COBIE HOV-FM-3D HOV-FM-MIN HOV-NATIVE HOV-PRODUCT-PASS-GTIN HOV-PRODUCT-PASS-SERIAL OPR-BUILDING-PERFORMANCE OPR-FM-ARCH OPR-FM-PC OPR-FIRESTOP-MAINT OPR-SIGNAGE-ROOM QAS-ACCESS-SIA500 QAS-ACOUSTIC QAS-ARCH-STRUCT-ADOPT QAS-ARCH-STRUCT-COORD QAS-BUILD-SEC QAS-COST-PLAUS QAS-SITE-LOGISTICS QAS-CONTRACTOR-DESIGN QAS-COORD-ZONE QAS-DAYLIGHT QAS-DECISION-VIS QAS-DESIGN-REVIEW QAS-DET-REF QAS-EARLY-COORD QAS-ELEMENT-PERF QAS-VORSATZ QAS-FALL-PROTECTION QAS-FIRE QAS-FUNCTIONAL-ACCEPTANCE QAS-FUND QAS-FURNISHABILITY QAS-HAZMAT-CHECK QAS-INSTALL-PATH QAS-MAINT-SPACE QAS-MEP-DETAIL QAS-OUTLET-USER QAS-CONSTRAINT QAS-BENCHMARK COM-QR-STAKEHOLDER-INFO QAS-ROOM-PROGRAM QAS-SPECIAL-ROOM-USER LAN-SPONGE-CITY COM-STAKEHOLDER-DIALOG QAS-EXCL-ZONE QAS-TREE-PRESERVE QAS-URBAN-AR QAS-USAGE-AGREEMENT

Name

Projektbezeichnung zur eindeutigen Zuordnung der Dateien.

+133 weitere

Phase

Bezeichnung der Teilphase gemäss SIA 112.

Zulässige Werte

11 - Strategische Planung
21 - Vorstudien
22 - Vorstudien Verfahren
31 - Vorprojekt
32 - Bauprojekt
33 - Bewilligungsverfahren
41 - Ausschreibung
51 - Ausführungsplanung
52 - Ausführung
53 - Inbetriebnahme
61 - Betrieb
62 - Überwachung
